INDY PRO

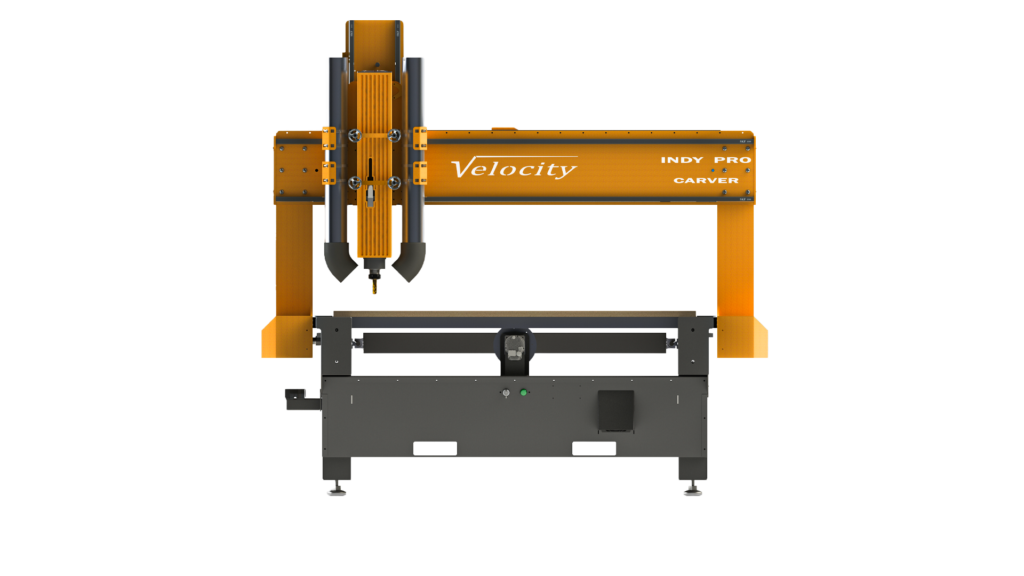

The INDY Pro is our professional large-size chassis routing and carving table. It takes a little more floor space and expands your work area an additional 25% over the standard Indy in height, width, and rotation. The 18” gantry and 4 ft rotational clearance is second to none. Built from the ground up as a carver but made extra rigid to handle router work with the tall gantry, there is no sacrifice in strength, rigidity or accuracy in doing any kind of work. Available in 5ft x 8ft and 5ft x 10ft bed sizes.

IMG_5438 Touched .jpg

FEATURES

  • Very rigid construction without extra weight makes the “Pro” tough and fast

  • Our unique cross bolted assembly allows perfect squaring during assembly, unlike welding

  • Lift out table top sections for custom setups, drop-in jigs or 4th axis work

  • Helical gearboxes virtually eliminate backlash in the gear train

  • Teknic servo motors: powerful, accurate, resistant to electrical noise, the highest quality in their class

  • Highest quality SKF / Ewelix linear bearings throughout for best accuracy, reliability and long life

  • 7.5 HP spindle is custom-built to our specification with a TG-100 collet. The TG has a very long grip and is used in specialized machines up to 50,000 RPM. This collet supports long cutting tools with unparalleled accuracy and low run out to reduce vibration.

  • 220 Volt single phase configuration allows installation in more locations – no need for 3 phase power

  • Helical 10:1 gearboxes, high quality and low backlash, high torque and acceleration

  • Helical rack and pinion gear drive on all axes

DIMENSIONS

Length: 120” (304.8 cm) (8ft bed) or optional 144” (365.8 cm) (10ft bed)



Width:  88” (223.52 cm)



Height: (Max) 96” (243.84 cm)



Electrical requirements: 220-240 Volt 40 Amp single phase 50 or 60 Hz

WORK AREA

Length: 97” (244 cm) or optional 122” (310 cm)



Width:  62” (157.5 cm)


Height: clearance under gantry 18” (45.7 cm)  (Max travel 19” (45.7 cm))

PACKAGE INCLUDES

Machine with spindle, wrenches & collets



PC with Windows 10 and the Velocity WinCNC controller installed and ready to run



21” 1280p monitor



All cables

​

13-month warranty on all parts and workmanship.



Non-expiring technical support, you call - we help.
